Tensile Strength: How Does It Really Define a Material’s Limits?

Choosing the wrong material for a critical part can lead to unexpected failures. This puts safety at risk and causes costly downtime. Understanding material limits is key.

Tensile strength is the maximum pulling stress a material can endure before it starts to permanently deform or break. It’s a vital measure of a material’s ability to resist tension.

When I’m working with my team at Allied Metal, or discussing a new project with an engineer like David, material selection is always a big topic. You can have the best design in the world, but if the material isn’t up to the job, you’re heading for trouble. One of the first properties we often look at, especially for parts that will be under some kind of load, is tensile strength. My insight here is that tensile strength is a critical property when selecting machining materials, as it determines how much load a material can withstand without breaking. It’s not just about whether we can machine the material; it’s about whether the final part will perform safely and reliably. Choosing materials with the right tensile strength is fundamental for both performance and safety, especially in demanding CNC machining applications. Let’s pull apart what this really means.

What Is Tensile Strength in Simple Terms?

You see "tensile strength" on material spec sheets, but what does it actually tell you? Is it just a number, or something more critical for your designs?

Tensile strength measures a material’s maximum resistance to a pulling force before it permanently stretches or fractures. It indicates how strong the material is under tension.

Diving Deeper into the Definition of Tensile Strength

Tensile strength, often referred to as Ultimate Tensile Strength (UTS)¹, is one of the most fundamental and important mechanical properties of any material. In plain language, it’s the maximum amount of pulling force, or stress, that a material can take before it starts to fail. Imagine you’re pulling on a rope. There’s a certain amount of force you can apply before that rope starts to stretch permanently or even snap. That breaking point, relative to the rope’s thickness, is related to its tensile strength.

More technically, tensile strength is the maximum stress a material can withstand while being stretched or pulled before it either necks down significantly (this is when the cross-section of the material starts to shrink noticeably in a localized area) or fractures. It’s a key indicator of a material’s structural integrity when subjected to tensional (pulling) loads.

When I’m looking at a material for a CNC machining project for someone like David, the tensile strength value gives me a quick idea of how robust that material is. For example, a high tensile strength steel might be great for a load-bearing component in an industrial robot, but it will also likely be harder to machine than a material with lower tensile strength. It’s this balance between performance requirements and manufacturability that we always have to consider. Understanding this property helps ensure that the parts we produce will not only meet the design specifications but will also hold up in real-world use.

What Does Understanding Tensile Force Involve?

We know tensile strength relates to pulling, but what exactly is this "tensile force"? Understanding the force helps grasp how materials behave under such loads.

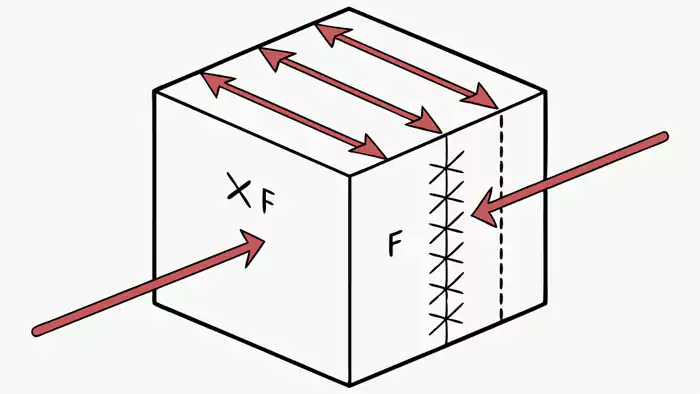

Tensile force, or tension, is a pulling force acting along the axis of an object, trying to stretch it. This force creates internal stresses within the material.

Diving Deeper into Tensile Force Dynamics

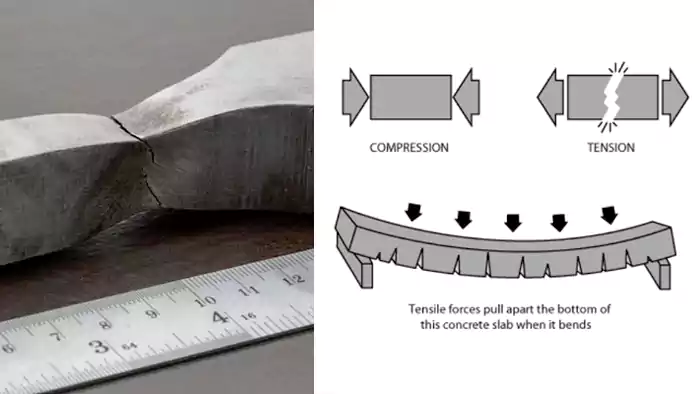

To really get what tensile strength is about, we first need to understand tensile force². A tensile force is simply a force that tries to pull something apart. Think of a cable supporting a bridge, a bolt holding two plates together, or even the strings on a guitar – these are all under tensile force, or tension.

When a tensile force is applied to a material, several things happen internally:

1. Internal Stress: The material resists the pulling force by developing an internal force distributed over its cross-sectional area. This internal resistance per unit area is called stress (specifically, tensile stress³ in this case). If you pull with more force, the internal stress increases.

2. Strain (Elongation): The material will also stretch or elongate in the direction of the applied force. This deformation, expressed as a ratio of the change in length to the original length, is called strain.

Initially, for many materials (especially metals), the relationship between stress and strain is linear – this is known as the elastic region. If you remove the force in this region, the material will return to its original shape, just like a rubber band (up to a point). However, if the tensile force (and thus the stress) increases beyond a certain point (the yield strength), the material will start to deform permanently. Even if you remove the force, it won’t go back to its original dimensions.

If the tensile force continues to increase, the stress will eventually reach the material’s ultimate tensile strength. At this point, the material has reached its maximum capacity to resist the pulling force. Beyond this, it will begin to "neck" (for ductile materials) and then fracture. Understanding how these forces interact with a material’s internal structure is key for engineers like David when they are designing parts that need to reliably bear loads.

How Is Tensile Strength Measured: Methods, Units, and Formulas?

Knowing a material has "high" or "low" tensile strength is one thing, but how is this value actually determined? Precise measurement is key for reliable engineering data.

Tensile strength is measured using a tensile test on a universal testing machine (UTM). Units are typically Pascals (MPa) or psi. The formula involves force divided by area.

Diving Deeper into Tensile Testing

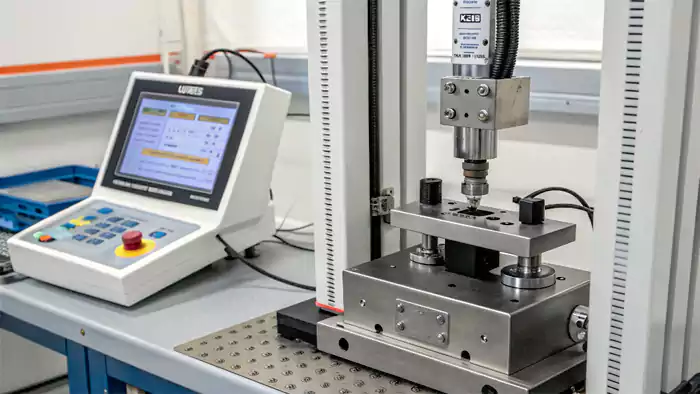

Measuring tensile strength isn’t guesswork; it’s a standardized scientific procedure. The most common method is the tensile test, performed on a universal testing machine (UTM). I’ve seen these tests done, and they are quite precise.

The Method:

1. Specimen Preparation: A sample of the material is carefully machined into a standard shape, often called a "dog-bone" specimen. This shape has a specific gauge length (the section being tested) and wider ends for gripping. The dimensions are precisely measured.
2. Gripping: The specimen is securely clamped into the grips of the UTM.
3. Applying Load: The UTM then applies a controlled tensile (pulling) force along the length of the specimen at a constant rate of deformation (strain rate).
4. Data Collection: As the specimen is pulled, the machine continuously measures the applied force and the elongation (extension) of the gauge length. This data is used to plot a stress-strain curve⁴.
5. Observation to Failure: The test continues until the specimen fractures. The maximum force reached before fracture is recorded.

Formulas:

• Engineering Stress ($\sigma$): This is calculated as the applied force (F) divided by the original cross-sectional area (A₀) of the specimen’s gauge section. $$ \sigma = \frac{F}{A_0} $$
• Ultimate Tensile Strength (UTS): This is the maximum stress value obtained from the stress-strain curve before the material begins to neck or breaks. $$ UTS = \frac{F_{max}}{A_0} $$

Units: Tensile strength, being a measure of stress, is expressed in units of force per unit area:

• SI System: Pascals (Pa). More commonly, Megapascals (MPa, which is N/mm²) or Gigapascals (GPa).
• Imperial/US Customary System: Pounds per square inch (psi). More commonly, kilopounds per square inch (ksi, where 1 ksi = 1000 psi).

For an engineer like David, these standardized tests and units provide the reliable data needed to compare materials and perform design calculations with confidence, ensuring the parts we machine at Allied Metal will meet the specified load-bearing requirements.

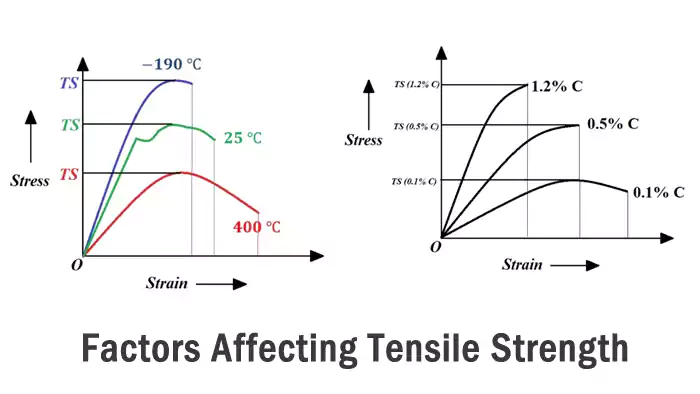

What Are the Key Factors Affecting Tensile Strength?

Is a material’s tensile strength a fixed, unchangeable number? Not quite. Several factors can influence this critical property, impacting how a material behaves under load.

Material composition, heat treatment, temperature, strain rate, and manufacturing processes significantly affect tensile strength. Internal defects or geometry can also play a role by concentrating stress.

Diving Deeper into Influencing Factors

A material’s tensile strength isn’t just a single, immutable value you look up in a book. While standard values exist for given conditions, several factors can significantly alter it. As a machinist and someone familiar with material science, I know these are crucial considerations.

1. Material Composition and Microstructure:

   • This is the most fundamental factor. The type of atoms, how they are bonded, and their arrangement (crystal structure) dictate the base strength.
   • Alloying elements⁵ play a huge role. For example, adding carbon to iron dramatically increases the tensile strength of steel. Other elements like manganese, chromium, nickel, and molybdenum are used to further enhance strength and other properties.
   • The microstructure (grain size, phases present) is also critical. Finer grain sizes generally lead to higher tensile strength.

2. Heat Treatment:

   • Processes like hardening and tempering⁶ are specifically designed to increase tensile strength in steels and some other alloys. Quenching creates a hard martensitic structure, and tempering adjusts the final strength and toughness.
   • Annealing, conversely, generally lowers tensile strength by softening the material.
   • My insight on hardening directly relates here – it’s a way to boost this property.

3. Temperature:

   • For most metals, tensile strength decreases as temperature increases. At elevated temperatures, atoms vibrate more, and bonds weaken, making the material easier to deform.
   • At very low (cryogenic) temperatures, some materials become stronger but also more brittle.

4. Strain Rate (Rate of Loading):

   • How quickly the tensile load is applied can affect the measured tensile strength. Generally, for many metals, a higher strain rate leads to a slightly higher tensile strength.

5. Manufacturing Processes:

   • Cold working (like rolling, drawing, or forging below the recrystallization temperature) introduces dislocations and strain hardening, which significantly increases tensile strength but reduces ductility.
   • The way a material was initially formed (e.g., casting vs. forging) also impacts its grain structure and defect population, influencing strength.

6. Surface Condition and Defects:

   • Notches, cracks, voids, or inclusions within the material can act as stress concentrators. This means the stress at the tip of a defect can be much higher than the average applied stress, leading to premature failure at a lower overall load. Surface roughness can also play a role.

For an engineer like David, understanding these factors is vital for selecting the right material and specifying appropriate manufacturing and treatment processes to ensure the final part achieves the desired tensile strength for its application.

What Are Some Real-World Applications and Material Examples?

Knowing the theory of tensile strength is good, but where does it actually matter? Seeing its role in applications and specific materials makes its importance clear.

Tensile strength is vital in aerospace, automotive, construction, and medical implants. Materials like high-strength steels, titanium alloys, and engineering plastics are chosen for their specific tensile properties. %[Collage of diverse applications: bridge, car chassis, aircraft wing, medical implant]https://cncmachiningsupplier.com/wp-content/uploads/2025/05/Real-World-Applications-of-Tensile-Strength.webp "Real-World Applications of Tensile Strength")

Diving Deeper into Applications and Materials

Tensile strength is a cornerstone of material selection in countless applications where parts are subjected to pulling forces. As my insight states, choosing materials with appropriate tensile strength is key for performance and safety, something I always discuss with clients like David.

Real-World Applications:

• Aerospace: Aircraft wings, fuselage components, landing gear, and engine parts must withstand enormous aerodynamic and inertial loads. High strength-to-weight ratio materials are crucial.
• Automotive: Engine components (connecting rods, crankshafts), chassis members, suspension parts, and seatbelt webbing all rely on specific tensile strengths to ensure safety and durability.
• Construction: Structural steel beams in buildings and bridges, reinforcing bars (rebar) in concrete, and cables in suspension bridges are designed based on their ability to handle tensile loads.
• Manufacturing: Cutting tools, dies for forming metal, and components of machinery like robot arms or press frames need high tensile strength to resist operational forces.
• Medical Devices: Implants like hip replacements or bone screws require biocompatible materials with sufficient tensile strength to handle physiological loads.
• Consumer Products: From the frame of a bicycle to the plastic casing of electronics, tensile strength plays a role in durability.

Material Examples and Their Relative Tensile Strengths:

When David is designing a component for an industrial automation system, selecting a material from a list like this involves balancing the required tensile strength against other factors like cost, weight, machinability, and environmental resistance. That’s where a good partnership between the designer and the manufacturing service provider really shines.

Conclusion

Tensile strength is crucial for material selection, defining a material’s ability to resist pulling forces. Understanding it ensures safe, reliable, and well-performing machined parts.
